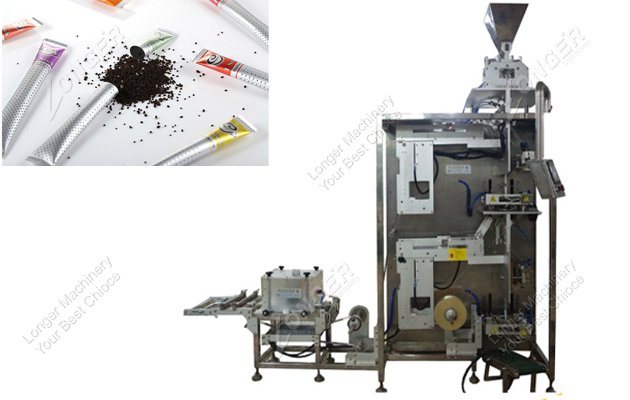

Holes Tea Bag Packing Machine Scope of Application:
This stick tea bag packing machine suitable for automatic packaging of small particles such as food and chemical products. For example, tea,black tea, broken tea and other products that need automatic tea bag. And the machine is very suitable for packing coffee stick.
Tea Stick Packing Machine Function:

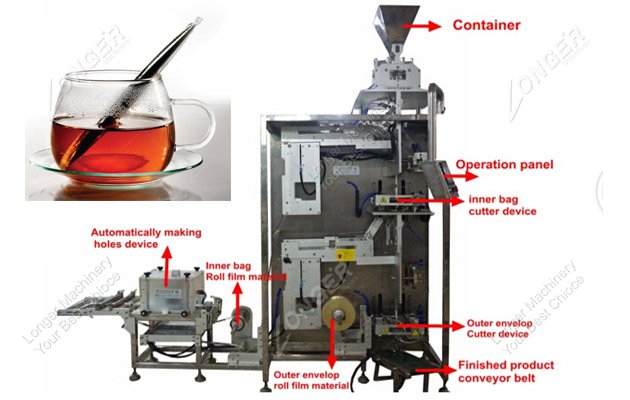

The tea stick packing machine can measure, make bag, fill, seal, count continuously and automatically .
Casters: Moving casters, easy to move the device, can brake.
Speed adjustment: can be set according to requirements, the length of the bag can also be adjusted.By setting the length of the bag through the touch screen, the sachet length will be automatically adjusted according to the color scale under the condition that the search color patch exists on the film roll. Adjustable bag length without changing molds.
Photoelectric: precise search, to retain the integrity of the pattern. Optical abnormal alarm, the cursor automatically shut down.
With record and display class production, the cumulative output, the temperature of the equipment heat sealing, continuous recording of running time. After the device completes the number of packages per product set, it automatically shuts down.
FAQ about tea stick packing machine:
1.What is your machine guarantee?
--Usually the guarantee period is for 1 year, and we will keep contact with our customers for after-sales service. We're aim to produce better machines and let our customers be satisfied.
2.What's the machine voltage or power of your machine?
--Usually the voltage in our country is 220V,50HZ, single phase, or 380V, 50HZ, 3 phase. If you have special requirement, pls tell us, we will adjust the voltage according to your requirement.
3.How to install the machine for us?
--We will install before shipping,and we can instruct the installation by video, email or picture, and for large project, we can also arrange our technical workers to help you to install the machine in your country .
4.If we have problems when using the machine, what should we do?
--If you have any problem, just contact us, we will help you to solve it, and if necessary, we will arrange our engineers to help you .
Automatic Tea Stick Bag Packing Working Video:
About Holes Tea Bag Packing Machine Shipping:
Before shipping, we will wrap the stick tea packing machine with PE film, then put the machine into standard export wood pack. We will send the machine to Qingdao or Shanghai Port, then shipping to customers' prot. After you receiving the machine, please check whether the machine is damaged and confirm that it is in good condition before receiving the goods.
Technical Data
Model
DXD-50Q
Machine Speed
20-50 Bags/min
Measuring Range
1- 10 g
Making bag size
(Width) 20-80 mm (Length)30-160 mm
Packing Film Material
Laminated or Composite Film, like PET/AL/PE; Nylon/PET/PE;PET/PA/PE; BOPP/CPP; paper-plastic. Etc…
Gross Weight
350KG
Bag type
Seamless center sealed stick
Notch
Zigzag Notch( Cut )
Voltage
AC220V Single- phase 50HZ or 380V/50HZ three phase
Total Power
3 KW
Control System
Imported original Delta PLC control system+full color touch screen
Machine Material
Stainless Steel,meet the standard requirements for food products and durable in using time.
