Applications:

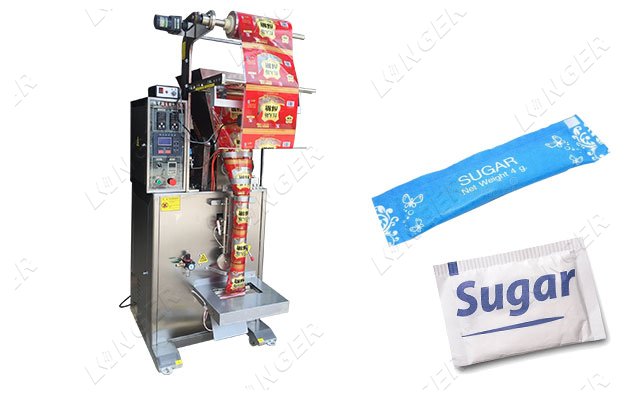

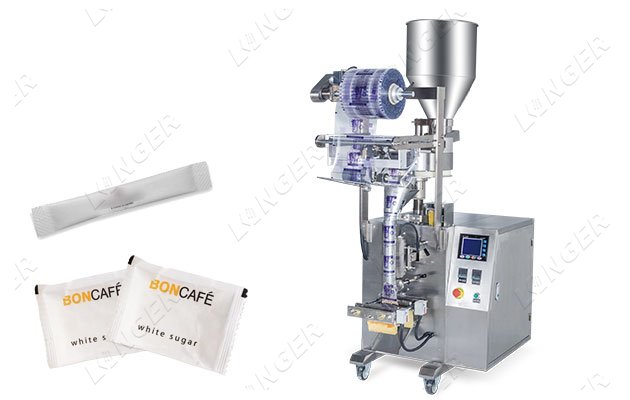

This is a sugar packing machine for filling and sealing. It is applicable for packing granular materials such as sugar, salt, tea, etc. in the industries of pharmacy, food, and chemicals.
Sachet Packing Machine Features:
☺The machine's internal mechanism and working parts are made of stainless steel.
☺Optimal combination of mechanical and pneumatic system in the main mechanism of the machine enables perfect result with low energy and air consumption.
☺The sugar packing machine adopts intermittent operation mechanism, which makes the packaged products beautiful and smooth, and can use a variety of packaging materials.
☺The sugar packing machine adopts advanced microcomputer control system to accurately adjust The measurement and bag length.
☺Safety device, when the working pressure is abnormal or the heating tube is out of order, the alarm will be prompted.
Packaging Material:

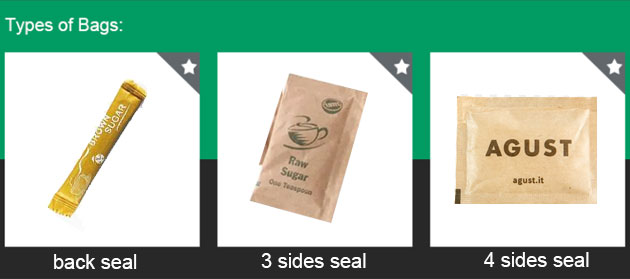

There are many materials for sugar sachet, but the common ones are as follows:
For example, paper/polyethylene, cellophane/polyethylene, polypropylene/polyethylene, polyester/aluminum foil/polyethylene, polyester/aluminum/polyethylene, nylon/poly Ethylene, polyester/polyethylene, etc.
Optional Equipment:
→Secrew Elevator for automatic continious feeding
→Product counter and stacking belt conveyor
→Special pattern notch unit
→Printer for date, serial number coding group
Technical Data
Model
LG-280
Packing Speed
40-80 Bags/min | 40-65 Bags/min
Total Power
1.8KW/220V
Measure Range
15-60g(can adjust)
Gross Weight
380kg
Bag Size Marking
L:40-140mm W:40-130mm
The Thickness of The Packing Film
0.03-0.07mm
Diameter of the Rolling Paper
=<400mm
Outsize Dimensions
720*980*1680(mm)
Note:We can also match the coding machine if you need.
