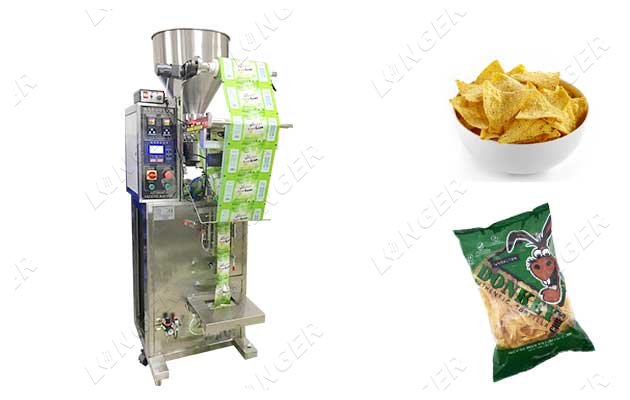

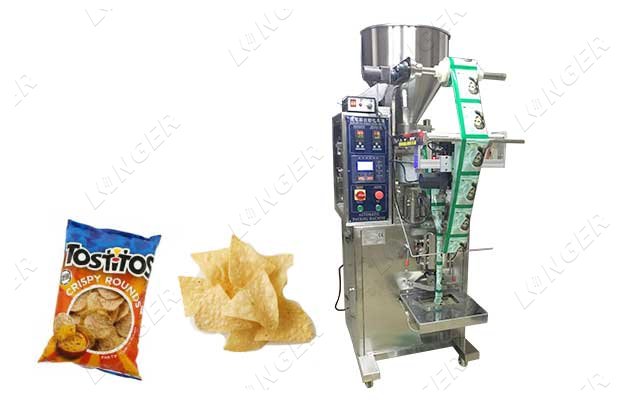

The vertical tortilla chips packing machine is designed to be suitable for packing corn chips, popcorn, nuts, etc.
How Does Tortilla Chips Packing Machine Work?
There are 5 main steps: film transport & unwind; ptional printing; film tracking and positioning; bag forming; filling and sealing.
1. Film transport & unwind: When the packing machine is runing, the film is usually pulled off the roll by film transport belts, which are positioned to the side of the forming tube which is located at the front of the machine.
2. Ptional printing: When the film travels through the printing unit, printer places desired dates/codes on the film.
3. Film tracking and positioning: Once the film has passed the printer, it travels past the registration photo eye. The registration photo eye detects the registration mark on printed film and in turn, controls the pull-down belts in contact with the film at the forming tube. The registration photo eye keeps the film positioned correctly so the film will be cut in the appropriate spot. Then, the film travels past film tracking sensors that detect the position of the film as it's traveling through the tortilla chips packing machine.
4. Bag forming: The film enters a forming tube assembly.
5. Filling and sealing: after filling chips, a set of heated horizontal sealing jaws come together to make the top seal of one bag and the bottom seal of the next bag.

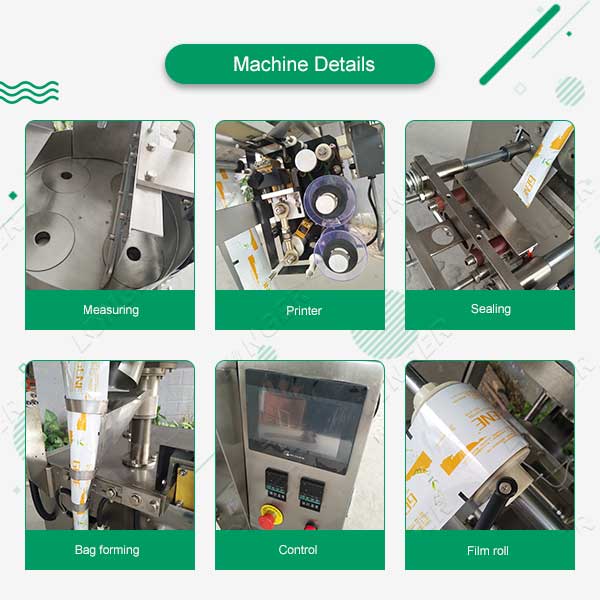

Corn Chips Packing Machine Features:
❤ The machine is made of food grade stainless steel 304, ensure food safety.
❤ It is equipped with four telescopic cups (measures) that made of food poly amide that can be adjusted and calibrated.
❤ Weight accuracy (10g-1000 g), the process of adjusting and calibrating weight is easy and simple.
❤ Quick, tool-free changeover, package multiple bag sizes on one machine.
❤ Versatile bag, including 3 sides seal, 4 sides seal, pillow bags.
❤ This corn chips packing machine is suitable for multi-layer composite film, single layer PE, PP and other materials.
