The inline packaging machine for cement widely use to packing cement,silica powder, sand casting, bead Jane rock, silica, carbon black and other mineral powder packaging.
Cement Packing Machine Video:
10 KG Cement Packing Machine Features:
1. Take the electricity as the power source, the cement enters the feed mouth from the outer material storehouse.
2. Just insert the bag manually and touch the switch lightly.
3. With the increase of cement in the bag, the sensor receives the signal is also changing, when the cement weight to meet the requirements, the bag automatically dropped.
4. The 10kg cement packing machine has four spouts, can be installed at the same time 4 bags of cement.
5. The inline packaging machine for cement controlled by microcomputer, intelligent recognition, high sensitivity, stable performance, strong anti-interference ability, accurate weighing.

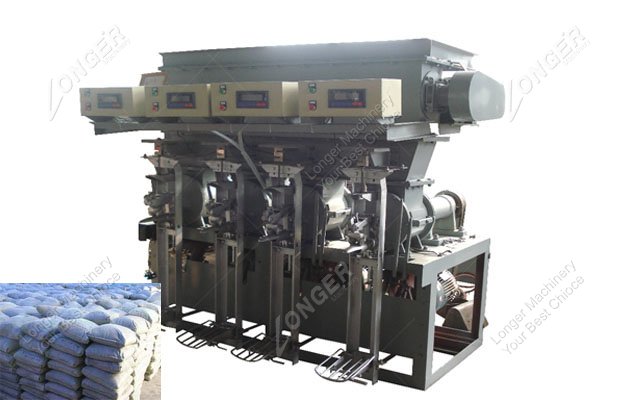

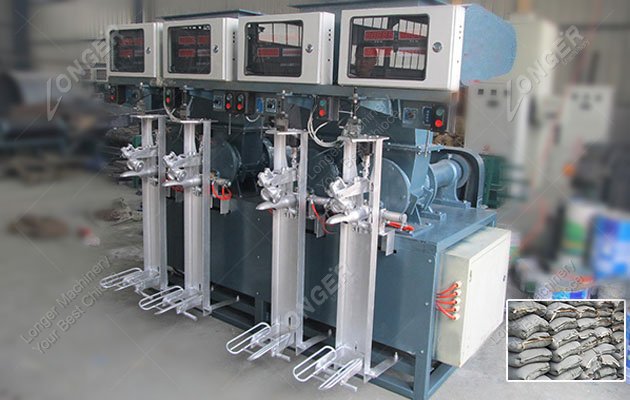

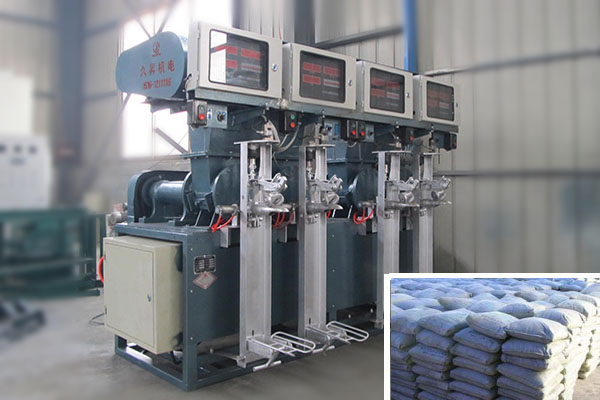

The inline packaging machine for cement is mainly made up of body, conveying mechanism, control mechanism and weighing mechanism.
1. Turkey cement packing machine body: mainly adopts steel welding structure with high strength and high steel degree.
2. Transport mechanism: the rotor of the main shaft is driven by the motor to rotate, and the cement is discharged by the rotating impeller and loaded into the packing bag through the transport pipe.
3. Control mechanism: insert packaging bag, touch micro switch, start filling, when the material is filled to the specified weight, the weighing machine will send a signal and the computer valve will work. The control mechanism action make the cylinder close the discharge port and the filling stop, and meanwhile the pressure cylinder shrinks and releases the packaging bag.
4. Weighing mechanism: mainly consists of computer scale, sensor and scale body.
5. Bagging mechanism: It has a unique and novel automatic bag pressing device. When the cement is loaded to the nominal weight, the cylinder closes the discharge port.
Our cement packing machine has sold to Turkey, Oman, UK, the USA and other countries, if you have any demand, please contact us for free.
