Features This semi-automatic volumetric powder filling machine can complete work such as measuring and filling. Due to the unique design, it is more suitable for packaging those powdery materials that are easy to flow or have extremely poor fluidity.

Working Principle of Powder Filling Machine:
Press the start button to transfer the wheels and the filling machine to start. Then press the conveyor start button to start the bottle feeding conveyor(if you want to fill in a bag, there is no this step). After the bottles enter the conveyor belt, the bottles are sent to the filling head at equal intervals through transfer wheels. After the photoelectric eye detects the bottle, it starts filling.


Dry Powder Filling Machine Features:
☆ The machine is made of stainless steel except for the motor and the tripod; the suspended material box can be easily removed and washed without tools.
☆ The volumetric powder filling machine adopts high-speed reaction clutch and brake to control the screw, which has the advantages of high precision, fast speed, large torque and long life.
☆ Digital tube display, packaging weight can be steplessly adjusted at any time, working status can be changed at any time, and operation is convenient.
☆ Designed as a weighing feedback specific gravity tracking type, overcome the shortcomings of changes in packaging weight due to changes in the specific gravity of materials.
☆ Various product adjustment parameter formulas can be stored, up to 10 formulas can be stored.
Replacing the screw attachment can adapt to the packaging of ultra-fine powder to small particle materials.
☆ For the dusty material outlet, a dust suction device can be installed to suck up the anti-spray dust.

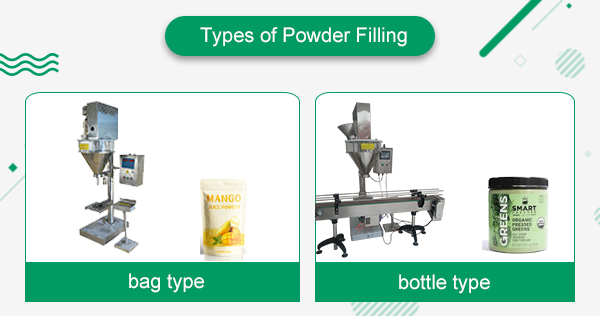

And this dry powder filling machine has two different types, one is for bag and another is for bottle:

Technical Data

Model	LGTB-500
Packing Weight	10-5000 gram
Accuracy Level	1.0
Packing Speed	1200-2500 bags/h
Dimension	690*1060*2000mm
Voltage	AC380v/50Hz/1.1kw
