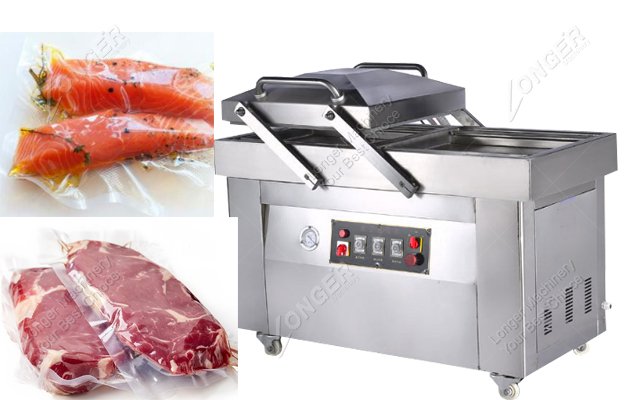

Dual Chamber Vacuum Packing Machine
Dual Chamber Vacuum Sealer Machine

Dual Chamber Vacuum Sealer And Packaging Machine

Moq:1 Set/Sets
Supply Ability: 200 sets/ month
Loading Port: Qingdao/Shanghai Port
Description:The main function of the dual chamber vacuum packaging machine is to draw a vacuum into the packaging bag, and then seal it to make a vacuum inside the bag.

Features The main function of the dual chamber vacuum packaging machine is to draw a vacuum into the packaging bag, and then seal it to make a vacuum inside the bag, therefore, the packaged goods can achieve the purpose of oxygen insulation, fresh, moisture-proof, mildew proof, corrosion prevention, insect control and pollution prevention, effectively prolong the shelf life for easy storage and transportation. The dual chamber vacuum sealer manufactured by our company is suitable for all kinds of plastic laminated film or aluminum foil laminated film bags and vacuum packaging for all kinds of raw and cooked food.

Dual Chamber Vacuum Sealer Video:


Dual Chamber Vacuum Sealer Operation Steps:
1. Switch on the power
2. Turn on the power switch and set the vacuum time according to the requirements of the vacuum packaging.
3. Set the sealing temperature and time according to the material of the vacuum bag.
4. Place the product on the sealing strip.
5. Press down on the vacuum cover and start vacuuming. Another vacuum chamber begins to place the product.
6. When the dual chamber vacuum sealer reaches a certain vacuum level, enter the sealing process.
7. After the seal is finished, it enters the cooling state, and then the air is let off, and the packaging is completed.
8. Press the vacuum chamber cover against another vacuum chamber to start another vacuum cycle.

Dual Chamber Vacuum Packaging Machine Features:
1. The efficiency of dual chamber vacuum sealer is twice that of single-chamber vacuum packaging machine. Because it can rotate between two rooms, which makes the operation closer and shortens the waiting time, the working efficiency is obviously higher than that of the single chamber vacuum packing machine.
2. The dual chamber vacuum sealer only needs a set of vacuum equipment and electrical system, as a result, the cost of the machine is only slightly higher than the single-chamber machine. For these reasons, the machine is more widely used and more practical.
3. The dual chamber vacuum packaging machine is mainly composed of fuselage, vacuum chamber, vacuum chamber cover lifting and landing mechanism, vacuum system and electronic control equipment. Mainly by electrical control and gas control to achieve packaging action, so the operation is safe and convenient.
4. Made of all stainless steel, the table and vacuum chamber are made by 4mm thick stainless steel plate.
5. Use two - way valve control under the pumping air way.
dual chamber vacuum sealer
Technical Data
Model LGDZ700/2SB
Voltage 380V/50Hz
Power(kw) 3.5
Packing capacity (time/h) 120-180
Sealing size (mm) 700×10mm/2piece
Sealing center distance (mm) 640
Vacuum chamber size(mm) 750*750*125
Dimension (mm) 1500*850*925
Material Thickness4mm/304stainless steel
