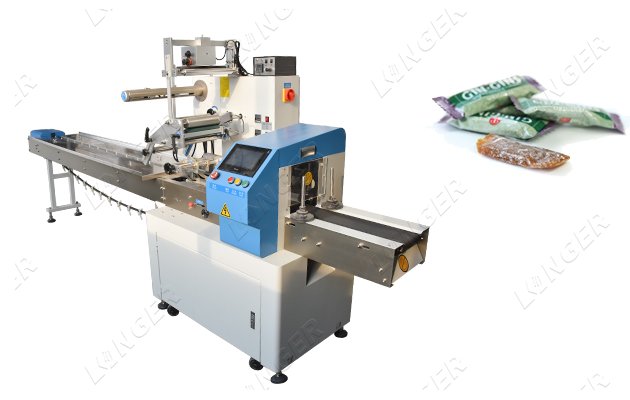

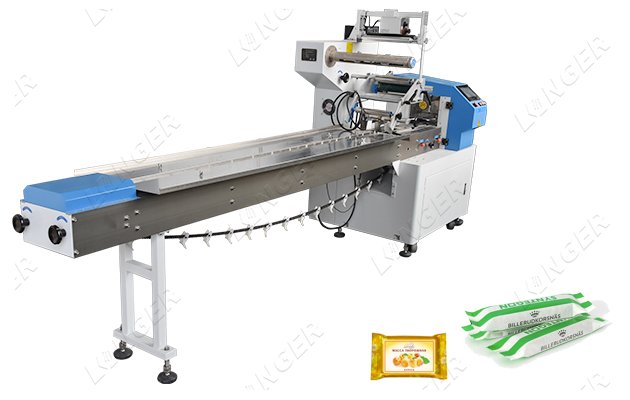

Features There are many shapes and sizes of confectionery, and there are many ways of packaging confectionery. Here we introduce one of the packaging forms-pillow type packaging.

This packaging type is widely used in the packaging of solid objects of various shapes, such as biscuits, chocolate, bread, instant noodles, ice cream and other products.

Confectionery Packaging Machine Working Principle:
The packaging film roll is installed on the shaft roller, the candies are placed in the feeder, and the conveyor belt automatically transports the candies to the packaging position, and is packaged in the film; then it is heated and pressed into a form, and then sent to the horizontal sealing cutter for sealing, cutting, the finished product is output by the conveyor belt.

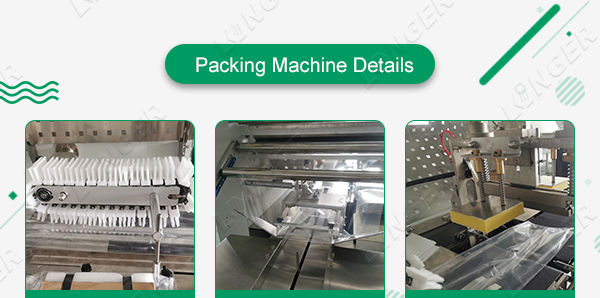

Individual Candy Wrapping Machine Structural Features:
1. Adopts touch screen control, the main control circuit adopts smart chip, accurate measurement, automatic detection of electrical faults, simple operation and convenient adjustment.
2. The confectionery packaging machine adopts high-quality dual-frequency conversion simple mechanical structure, easy to maintain, less wear and long life.
3. High-precision photoelectric detection and tracking, two-way automatic compensation, accurate and reliable.
4. The bag length does not need to be set manually, it is automatically detected and set automatically during the operation of the equipment.
5. The packaging speed and bag length are controlled by dual frequency converters, steplessly variable speed, and the width can be adjusted arbitrarily, which can perfectly match the previous process of the production line.
6. Adjustable end sealing structure makes the sealing more perfect and eliminates the phenomenon of bag cutting.
7. The conveying table is made of stainless steel, and the host part is sprayed with plastic paint. It can also be made of all stainless steel according to customer needs.


Confectionery Packaging Machine Advantage:
❤High packaging efficiency, stable performance, convenient operation and maintenance, and low failure rate.
❤It can run continuously for a long time.
❤Good sealing performance and beautiful packaging effect.
❤It can print the production date, inflation, three-dimensional folding angle, hanging hole and other equipment synchronously.

Individual Candy Wrapping Machine Installation and Training:
❤We will be responsible for the installation and commissioning of equipment by professional and technical personnel in accordance with the actual needs of customers to ensure the smooth progress of various installation and training tasks.
❤Our company's system engineers and customer service remain online 24 hours a day, and can solve problems in the operation process for customers at any time.

Technical Data

Model	LG-250B
Film Width	Max. 350mm
Bag length	65-190 OR 90-330mm
Bag width	30～110mm
Film Diameter	Max. 320mm
Product height	Max.40mm
Packing speed	40～230 bags/min
Power supply	220V,50/60 H Z,2.6 KW
Machine size	(L)3770X(W)670X(H)1450mm
Machine weight	880Kg
