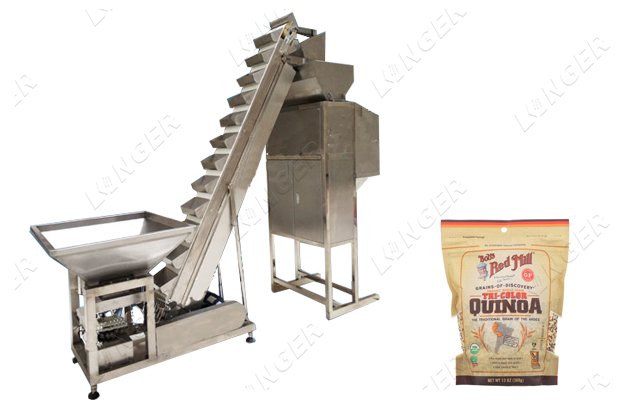

Features The semi automatic weighing and filling machine is mainly designed for grain high-precision packaging requirements. The grain packing machine performs two speed filling, metering and lifting according to the signal given by the weight sensor mounted under the container.

Application:
This packaging equipment handles grocery items such as rice, pulses, grain, wheat, green peas, seeds without any change parts or making changes in the settings, one can keep on toggling with different materials & different target weights on the same packing machine.

Semi Automatic Weighing Machine Workflow:
manual bagging→rapid filling → the weight reaches the pre-value → slow filling → the weight reaches the target value → the bag is taken out

Main Features of Semi Automatic Weighing and Filling Machine
1. The pneumatic bagging device and the bracket are mounted on the weight sensor of the machine, and the fast or slow filling according to the preset weight, the weighing system with high reaction speed, ensures high packaging precision.
2. PLC control, touch screen man-machine interface display, easy to operate.
3. All stainless steel structure, combined or open type bin, easy to clean.
4. Two working modes can be switched, quantitative or real-time weighing.

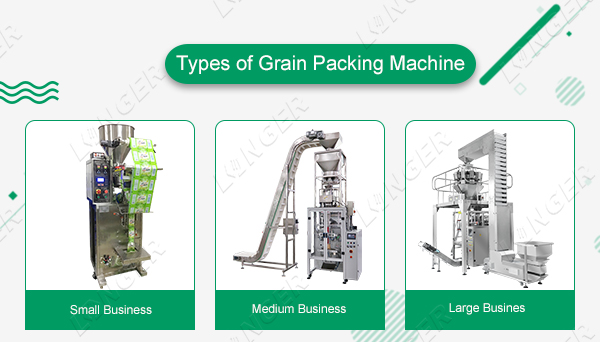

Types of Weighing and Filling Machine:
Depending on the number of weighing heads, this packaging equipment is named as single head, two heads, three heads and four heads. The speed of two heads is double the single head, the speed of four heads is double the two heads or four times the single head.

Technical Data

KY-C04
Packing weight	50-1000g
Packing Speed	1200-2000bags/hour
Accuracy	±1%
Power	750W
Dimension	1250*910*2100（mm）
Weight	180kg
