cigarette pack wrapping machine
tobacco pack wrapping machine

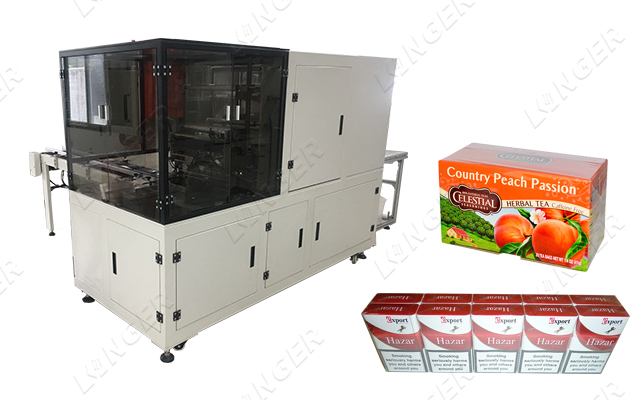

10 Tobacco Cigarette Pack Wrapping Machine BTB-400

Moq:1 Set/Sets
Supply Ability: 200 sets/ month
Loading Port: Qingdao/Shanghai Port
Description:

Features The 400 cellophane wrapping machine is designed for 10 cigarette pack and large box. This cigarette pack wrapping machine is a highly intelligent packaging equipment integrating machine, electricity and gas. It has the characteristics of compact structure and beautiful appearance. The work of the wrapping machine is completed by a series of pneumatic and working parts inside the machine. It adopts multi-function digital display frequency conversion stepless speed regulation; automatic feeding, touch display to realize man-machine interface, reasonable structure and advanced technology.


Tobacco Pack Wrapping Machine Features:
❤This wrapping machine has the function of one-time completion of the whole process of assembly, stacking, wrapping, sealing, and body shaping of multiple boxes.
❤The main body of this machine is pneumatic, using the principle of skin-wrapping and multi-function digital display frequency conversion stepless speed regulation; PLC programmable control design technology to realize automatic control of heat sealing and shaping temperature, automatic feeding and automatic counting.
❤While the servo motor is used to feed the film, it is equipped with a stabilized air pump to assist the film, so that the film is fed smoothly, and the interference of static electricity is eliminated; the servo motor pushes the box, so that the position of the push box is accurate and stable.
❤The materials used for the parts in contact with the platform and the packaging box are all made of high-quality food-grade non-toxic stainless steel.
❤Use brand electrical components such as touch screen to realize man-machine interface operation. The tobacco pack wrapping machine can complete programming setting, control operation, tracking display, overload protection, failure shutdown.

Application:
This cigarette pack wrapping machine also suitable for wrapping various square (boxed) items such as medicines, health products, nutritional supplements, food, cosmetics, stationery, VCD, cigarettes, etc.
 Cigarette pack wrapping machine application
Benefits of Cellophane Wrapping:
① Anti-counterfeiting, moisture-proof
② Easy to disassemble and transport
③ Improve the added value of the product, improve the grade of the product, and improve the quality of the product

Cigarette Pack Wrapping Machine Quality Commitment:
The manufacturing and testing of the machine have records and testing data, and they will be shipped after the testing is qualified.
For machine performance testing, we sincerely invite customers to personally inspect the whole process and performance of the machine.

Delivery Time Commitment:
Product lead time: According to user requirements, if there are special requirements and need to be completed in advance, our company can specially organize production and installation, and strive to meet user needs.
When the machine is delivered, our company provides users with the following documents:
①General installation plan
②Operating Instructions
③Technical maintenance and repair manual, providing a list of vulnerable parts and spare parts, and a certain amount of spare parts are attached
Technical Data
Model LG-BTB-400
Packaging material film and gold tear tape
Packing speed 10-25 boxes/min
Max.package size (L)300*(W)200*(H)100mm
Power 220V 50Hz  5.5kw
Machine weight 1250kg
Machine dimensions (L)2380*(W)1050*(H)1680mm
